Summary

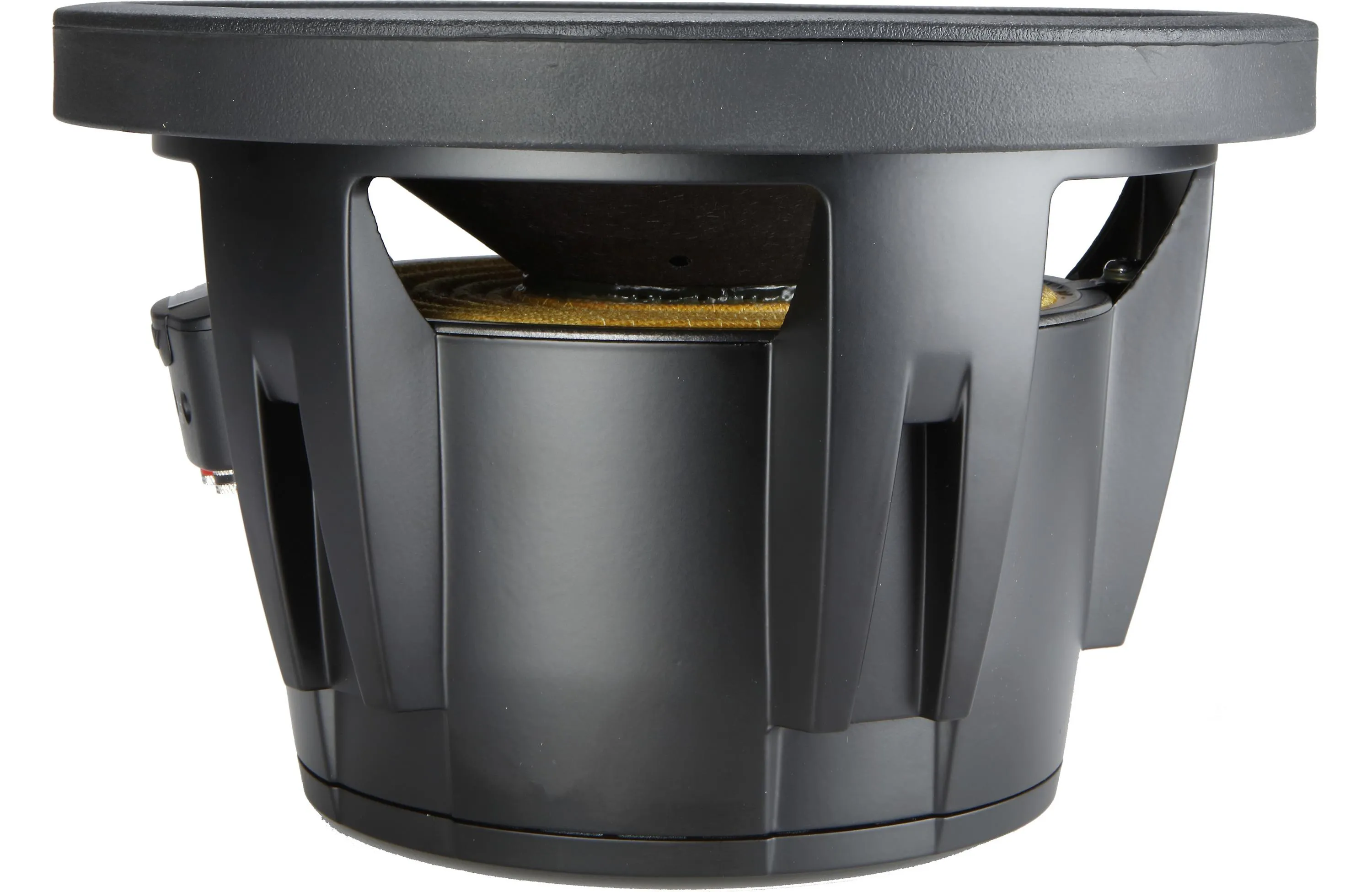

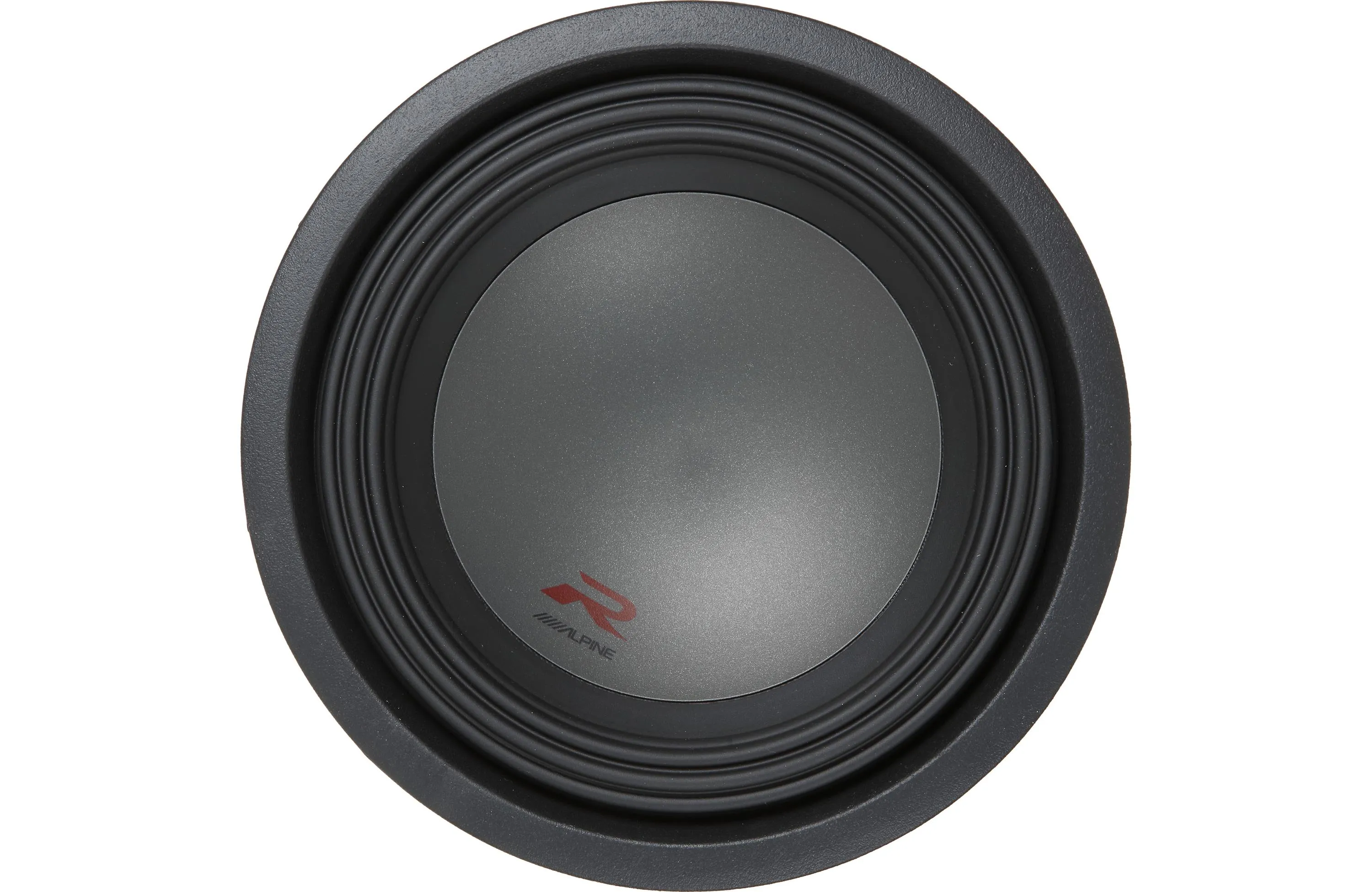

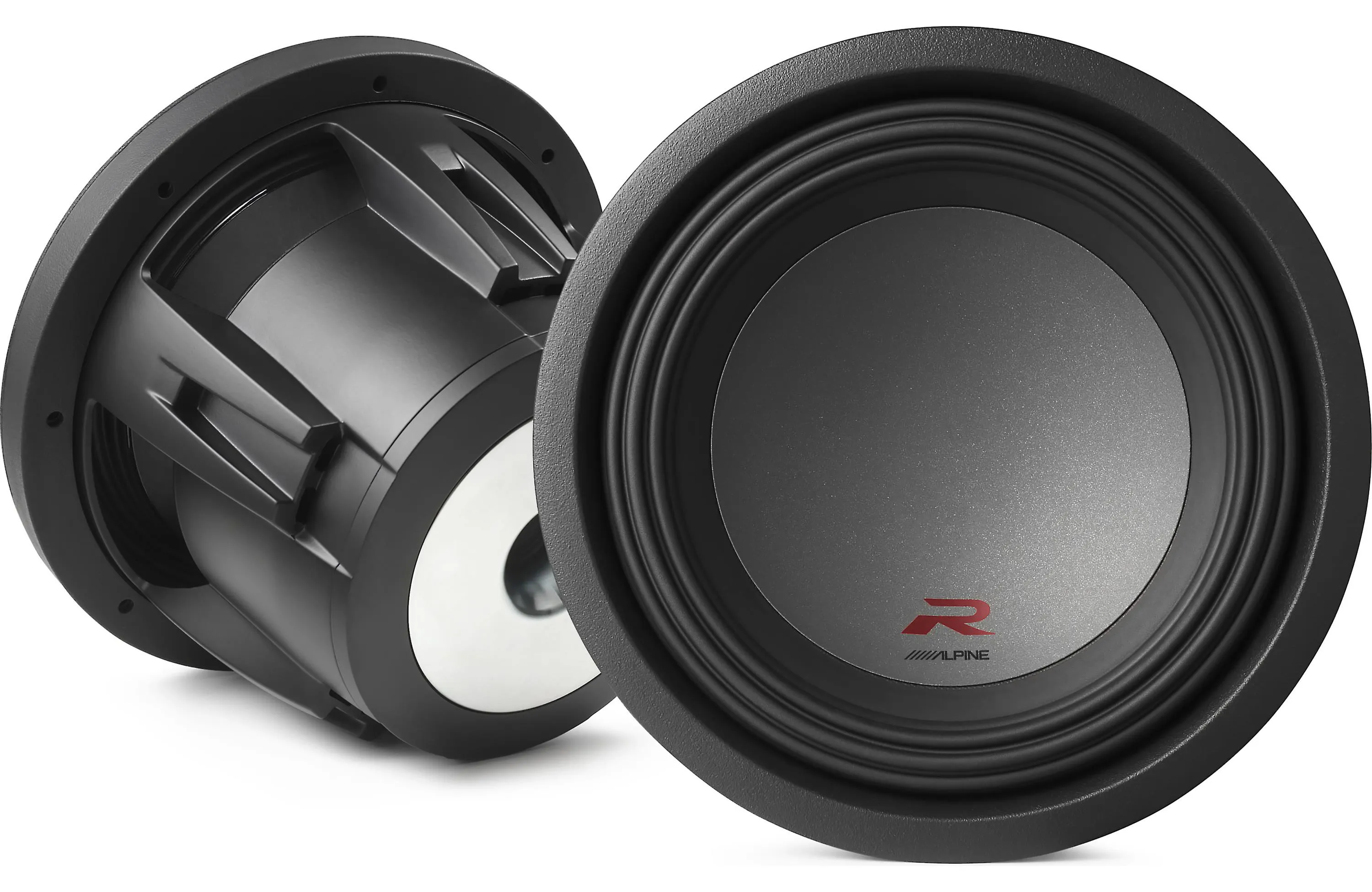

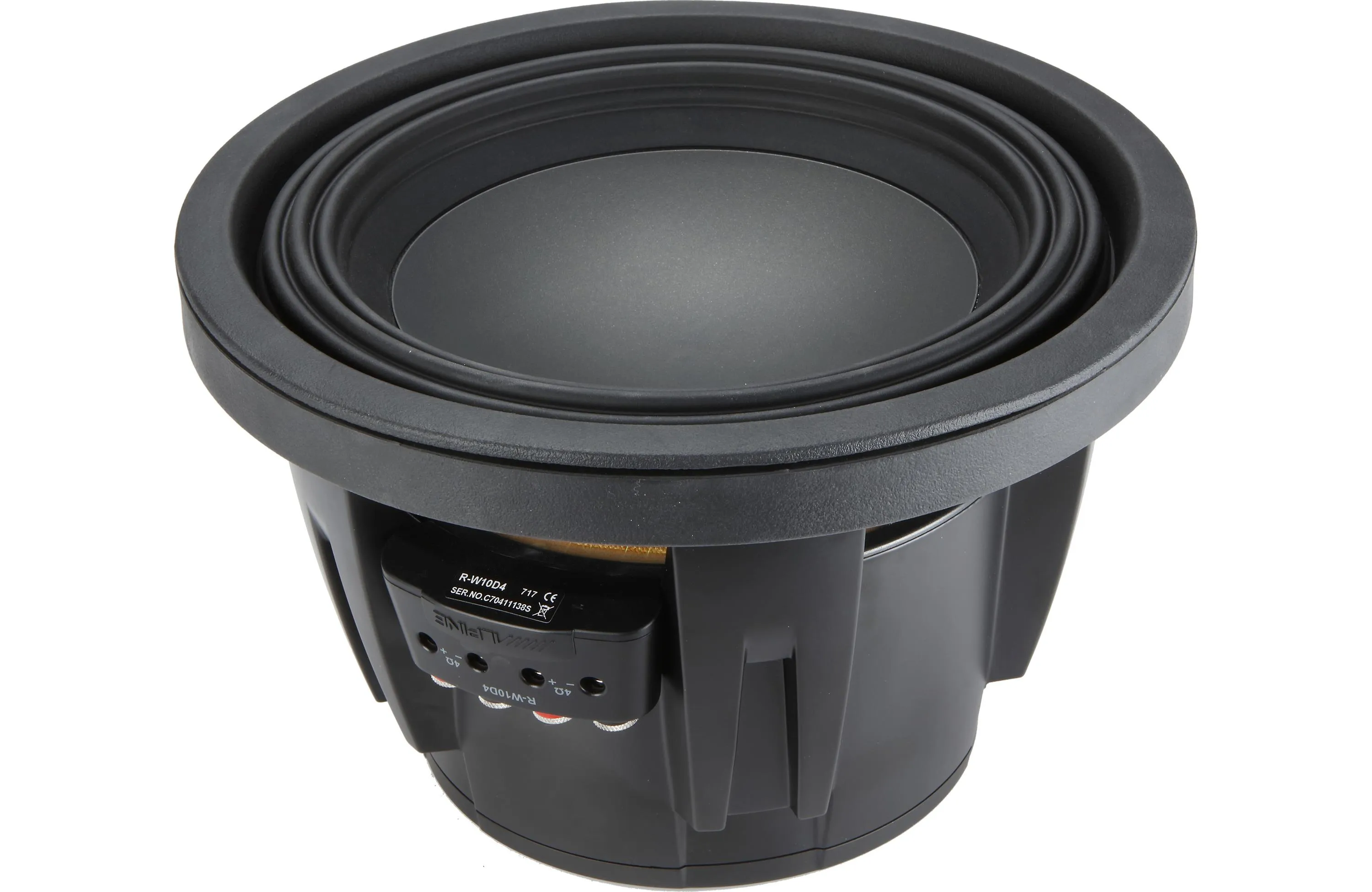

- 10" subwoofer with dual 4-ohm voice coils
- Kevlar reinforced pulp cone with HAMR Santoprene rubber surround
- Frequency response: 26-200 Hz
- Power handling: 750 watts RMS (375 watts per coil)
- Peak power: 2250 watts
- Top-mount depth: 5-7/8"
- Grille not included
- Warranty: 1 year
Overview
Maximum bass output
For those who like it loud, Alpine salutes you! Their legendary R-Series subwoofers are made to bring powerful bass to just about any vehicle. The R-W10D4 10" sub features a cone made from Kevlar® treated pulp — the same material used to make bulletproof vests — while its durable Santoprene™ surround allows for huge amounts of excursion. Alpine built this sub for bassheads who want the best of both worlds: accurate response and otherworldly thump.
Bring on the power
The R-W10D4 can handle up to 750 watts RMS, so be sure to choose a suitable amplifier as these bass monsters definitely want lots of power. Its dual oversized 4-ohm voice coils offer wiring flexibility you'll appreciate as your system changes and grows, so you can always pull maximum power from your amp. It works well in sealed and ported enclosures so you can choose what kind of bass you want to hear and feel.
Note: If you are wiring this DVC sub for lower impedance, make sure that your amp is compatible.
To drive this single subwoofer, we recommend a mono amplifier rated between 560 and 1125 watts RMS at 2 ohms.
